Design for printing
Review the wall where the job needs it.
A single wall dimension does not describe every feature. Look at the local geometry, its use and how the part will be prepared.
/ 3D Print Direct

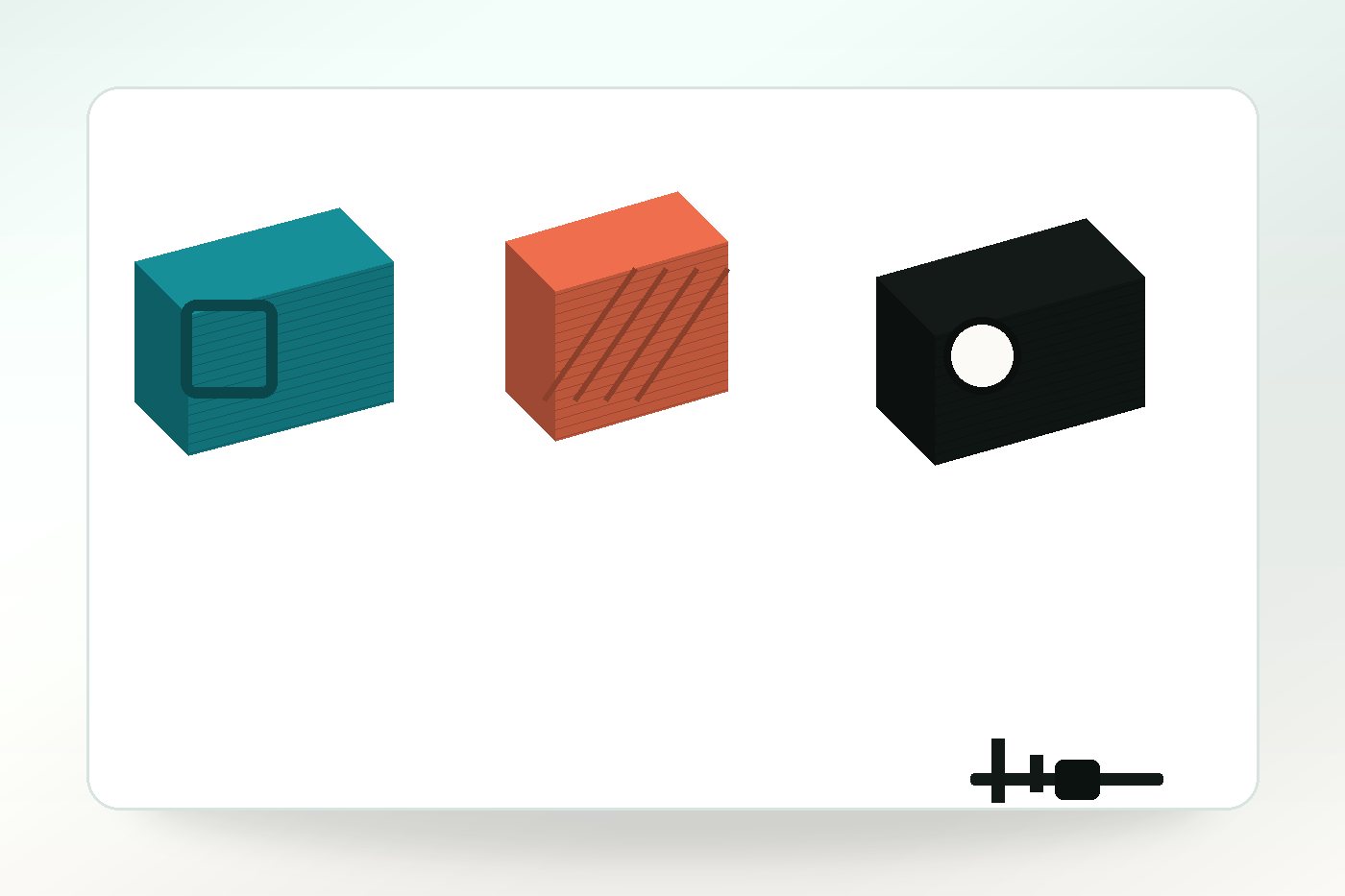

Locate the thin regions
Use a section view to identify shells, ribs, edges, screw bosses and projecting features. Record the dimensions of the regions that matter instead of calling the whole model “thin”. A decorative edge and a loaded mounting feature need different questions.
Keep the editable model so local changes can be made without thickening every surface or moving a critical interface.
Separate CAD walls from slicer settings
The designed shell and the print’s perimeters, top layers and internal infill are related but not interchangeable. Prusa’s layers and perimeters documentation illustrates those preparation controls. The selected machine and profile determine how a particular feature is represented.
We do not supply a universal minimum wall, nozzle width or perimeter count here. A nominal dimension must be assessed against the actual process and intended use.
Review local load and handling
Explain where a screw, clip, contact or repeated movement acts on the part. Mark which walls can change without affecting the assembly. If a thicker wall would move an interface or reduce internal space, make that trade-off explicit.
Do not treat more material everywhere as a validated strength solution. Read designing stronger parts for a requirements-led review.
Include access and finishing
A delicate feature may also need to survive support removal, processing and handling. Identify areas that cannot be contacted or altered. For hollow resin geometry, discuss the actual wall design and internal access; an attractive cutaway is not a processing plan.
Agree the change before the print
Send the actual model, a section and the fixed interfaces through file and model advice if thickness needs revision. For quotation, name the accepted revision and any physical acceptance check. The functional-part brief helps separate those requirements from appearance preferences.
