Processes and materials

Make the small details explicit.

For a detailed model, the broad shape may be clear while its smallest features remain uncertain. Show those features at their real scale.

/ 3D Print Direct

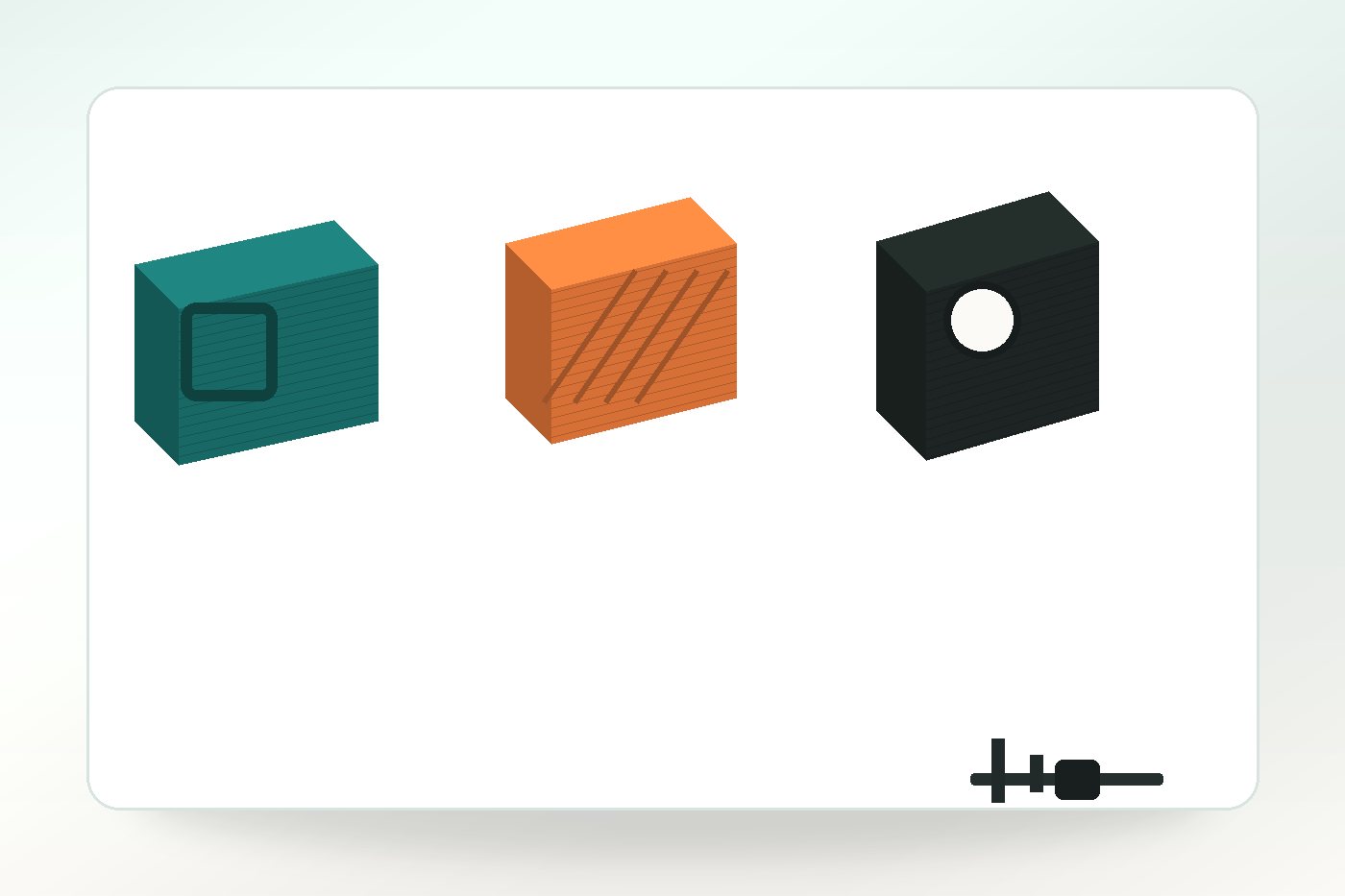

Distinguish decoration from an interface

Mark the smallest details and explain what they do. A raised visual motif and a locating pin of the same size have different acceptance questions. Provide dimensions where the feature must interact with something else, and identify delicate features that affect handling.

A zoomed screenshot can exaggerate apparent size. Include an overall dimensioned view plus a close-up; do not ask the supplier to infer dimensions from perspective.

Protect the priority surface in the brief

Show the face that will be presented and any regions where support contact is unacceptable. Formlabs’ support-mark guidance notes that support removal can leave marks. Discuss the finishing scope for that face, not an undifferentiated request for “perfect quality”.

The finish-priority study is a fictional example of how to mark a face. Its artistic smooth surface is not a finish standard.

Reveal cavities before processing

Include a section view for enclosed or hollow regions. State whether openings and wall geometry can change. Drainage, venting and cleaning access need consideration for the actual orientation, as Formlabs’ hollowing documentation explains for its system.

Do not copy a hole pattern from an illustration. The hypothetical hollow form makes that limitation explicit.

Agree the material and finishing route

Explain handling and exposure requirements. Confirm the particular resin and whether finishing is part of the job. Washing and any required curing follow the selected system and material; Formlabs’ finishing guide provides context, not a universal home-processing recipe.

If the model is meant for a functional or safety-critical use, state it clearly. Fine detail does not establish certification or suitability.

Send a model-specific enquiry

Use the resin service route and send the actual revision, quantity, feature dimensions, visible-face annotation and section view. If the geometry needs changing, ask for file advice first.
