Prototypes and production
Build a learning sequence, not a pile of samples.
A development programme becomes clearer when each iteration has a purpose and a result to record. Avoid changing everything at once without a reason.
/ 3D Print Direct
Separate the uncertainties
List the questions still open: proportions, handling, an interface, a visible surface or a requirement for use. Decide which uncertainty matters next. A visual sample and a fit sample can each be useful without being treated as the finished product.

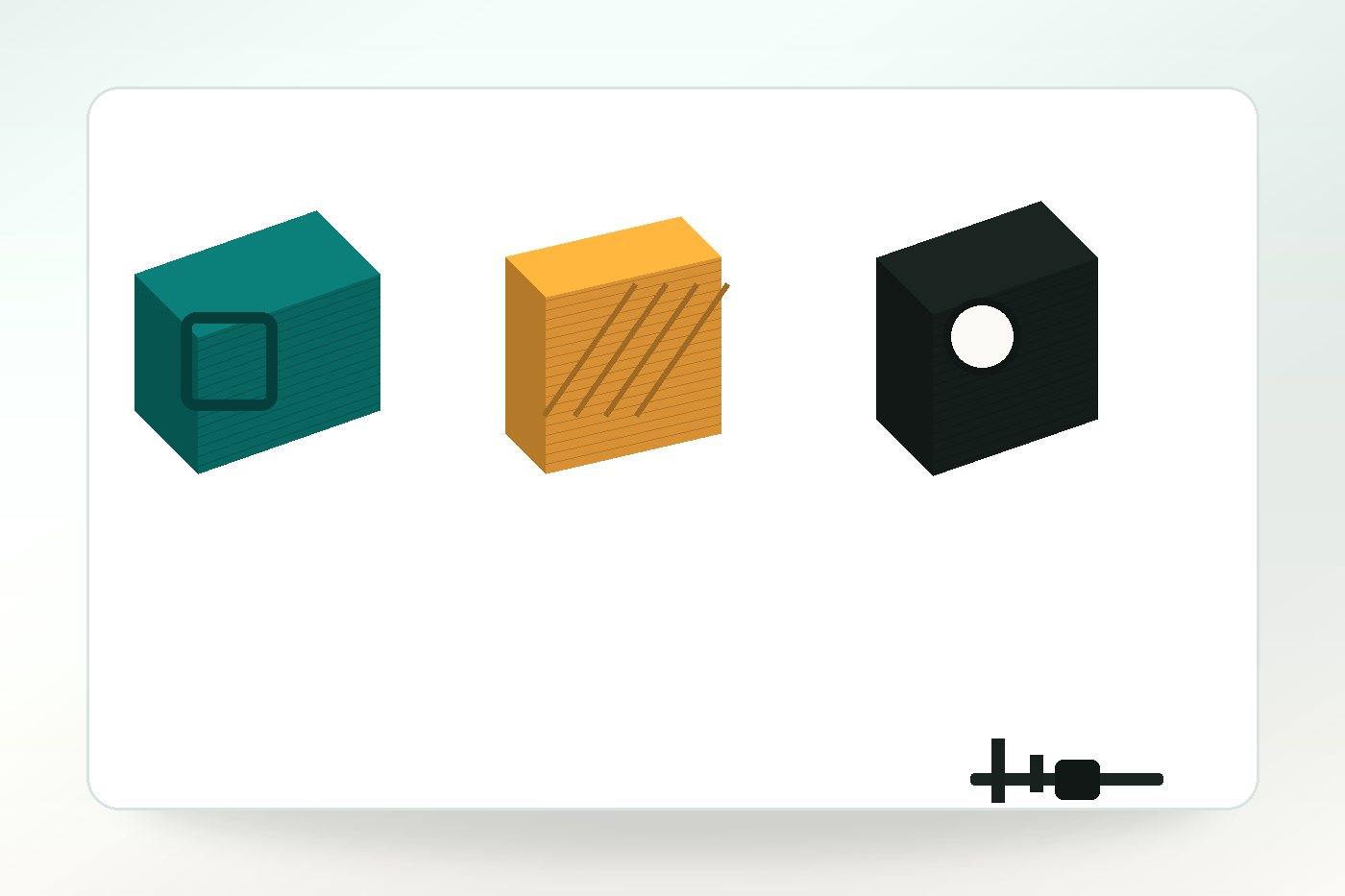

For illustration, an invented enclosure programme could assess external proportions, then a lid interface, then the presentation finish. This is a hypothetical sequence, not a customer project or a validated product.
Define the next observation
For each iteration, write what you expect to learn and how you will observe it. Keep the file revision, dimensions and reference components with that description. If feedback is subjective, label it as such rather than turning it into a measured acceptance claim.
Use the prototype brief to specify one iteration. The prototype service explains the available printing routes.
Control changes between revisions
Record which features changed and which stayed fixed. If several things must change together, explain why. Avoid comparing a new geometry, material and finish against an older sample as if geometry were the only variable.
Retain the earlier file and observations so the next decision is traceable. A later “final” file name should not erase the revision history.
Move from a sample to repeats deliberately
Before a small run, identify the agreed revision and relevant acceptance criteria. A successful shape discussion does not establish final-use behaviour, and a digital review does not prove physical fit.
For a pilot that collects feedback from several users or assemblies, read small-batch product trials. Those trials need their own defined learning objective.
Quote the learning step
Send the quantity and specification for the current iteration, not every future possibility as one order. Use instant quoting for accurate offered choices; use a manual enquiry for a more involved scope. Agree design changes through model advice separately from printing the next sample.
